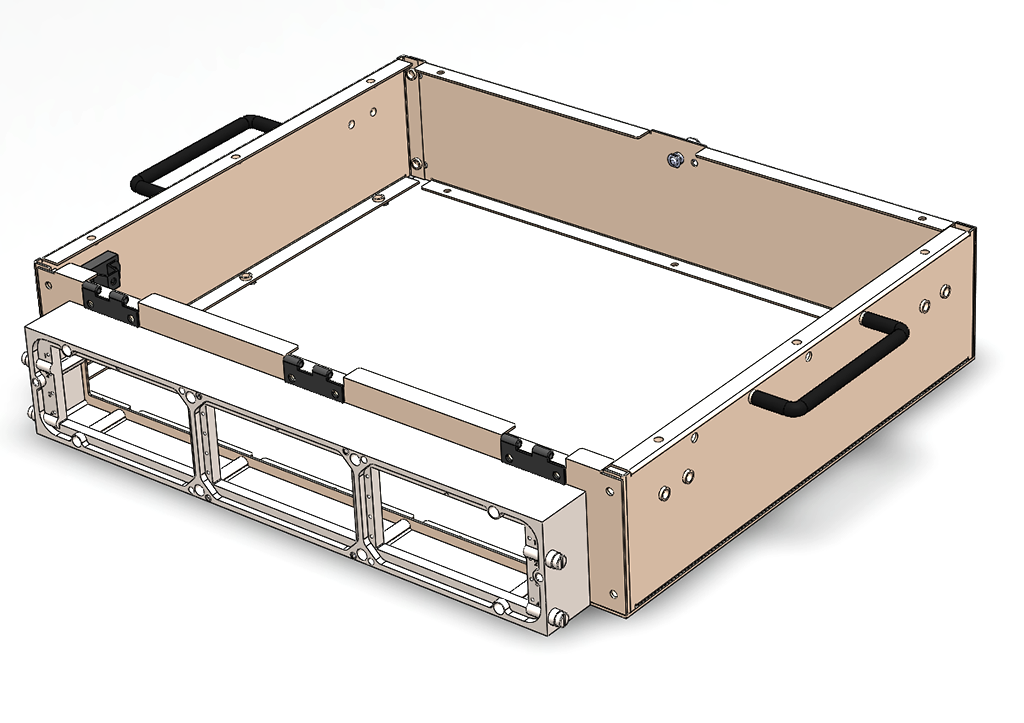

The Series 70 Pan Assembly is with the Virginia Panel G12 Test Platform.
Technical Specifications
- 5 Piece Pan assembly for ease of modification for fans, and connectors.
- Optional 3/8″ G10 or ESD G10 Blank Top plate.
- Optional Spring Force for Top Plate support.
- Optional Pan depths.
- Powder Coated finish.
- Optional interface locations on the 24 x 20 model.
How To Determine Kit Dimensions
First Dimension: Left to Right
Second Dimension: Front to Back
Example: A7006-40PAN= VP103S 20″ x 16″ x 4″
20″ Left to Right
16″ Front to Back 4″ Deep

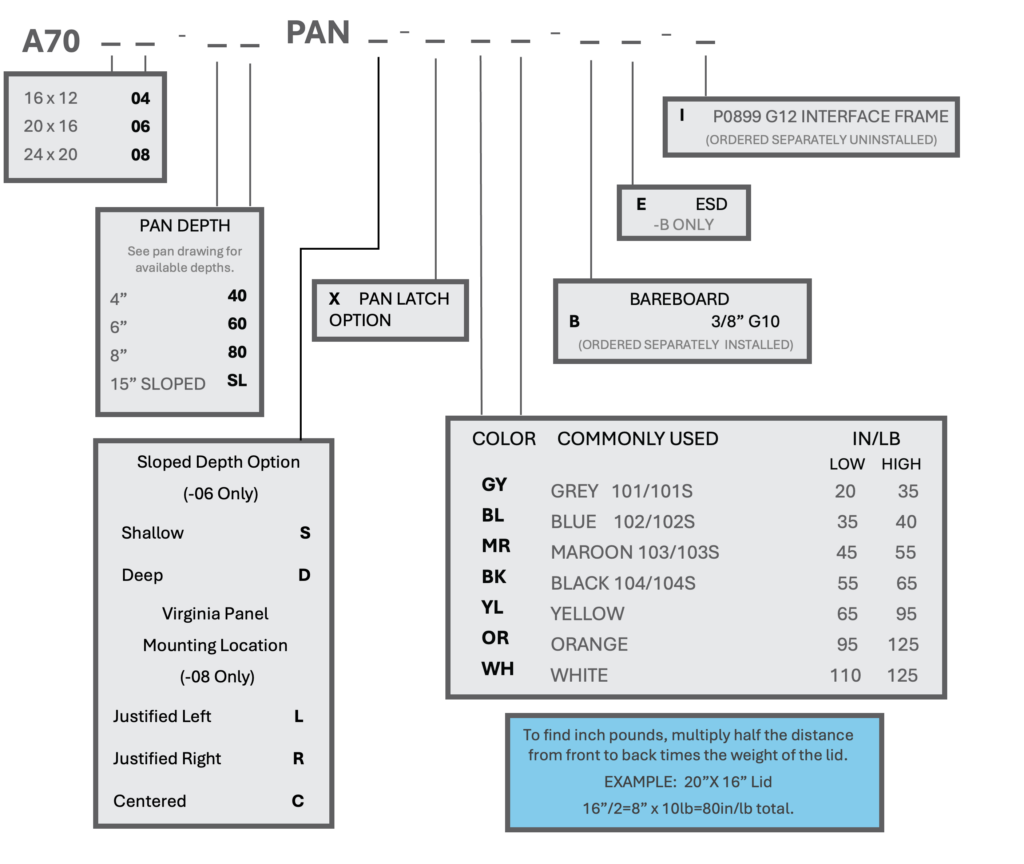

Parts Generator
