Series 459

Series 459 VP ITA S6 CamGate ‘Z’ Axis Mechanical Test Kits

The VP Series 459 CAMGATE mechanical kits, utilizing the patented CAM mechanism, offer precise Z axis linear motion when testing higher point count and finer pitch test centers. By using the Z axis motion, side load of the test probes is minimized thus increasing probe life and performance. The Series 459 provides interface compatibility using the Virginia Panel ITA S6 interface. The ITA frame is offered as an option for those preferring to provide their own ITA Interface. The CAM/GATE utilizes a cam roller system for precision guiding and smooth operation and 1.00” push plate movement. The gate assembly is movable to three different positions which allows for the versatility of top side probing, or relocating the frame assembly for PCA’s the have tall components.

Technical Specifications

  • Hinged 3/8″ thick G10 Probe plate
  • Optional 3/8″ thick G10 or 1/2″ thick clear Polycarbonate Push Plate
  • Optional 1/4″ x 1″ Aluminum Rails (-R) for PCB access
  • 1″ stroke
  • Accepts Virginia Panel ITA S6  (Not Included) (-I Option)
  • Five Piece Sheet Metal Enclosure for ease of modification to add connectors, fans, and other components.
  • Optional Sheet Metal pan depths
  • Tooling Holes provided for accurate drilling of plates
  • Guide pins for accuracy on floating push plates. (-G and -L )
  • Optional ESD plates. (-E)
  • Optional Stripper plate (-T)
  • The Push Frame is adjustable. Lower position, (standard for -G) for top side probing with a G10 push plate. Middle Position (standard for -L), Top position for use with assemblies requiring clearance for PCA’s with tall components.9

How To Determine Kit Dimensions

First Dimension: Left To Right
Second Dimension: Front To Back
Example: A4576 VPS6-CG103S 17.94″ x 16″
17.94″ Left to Right
16″ Front to Back

How To Determine UUT And Pan Measurements

Kit Size

Max UUT Size

Max UUT Size with Stripper Plate
VPS6-CG101: 17.94 X 16 (A4591) 4.62 x 6.63 4.62 x 6.63
VPS6-CG102S: 17.94 X 16 (A4594) 9.62 x 7.50 9.62 x 6.75
VPS6-CG103S: 17.94 X 16 (A4596) 13.62 x 10.75 13.62 x 9.25
All dimensions in inches

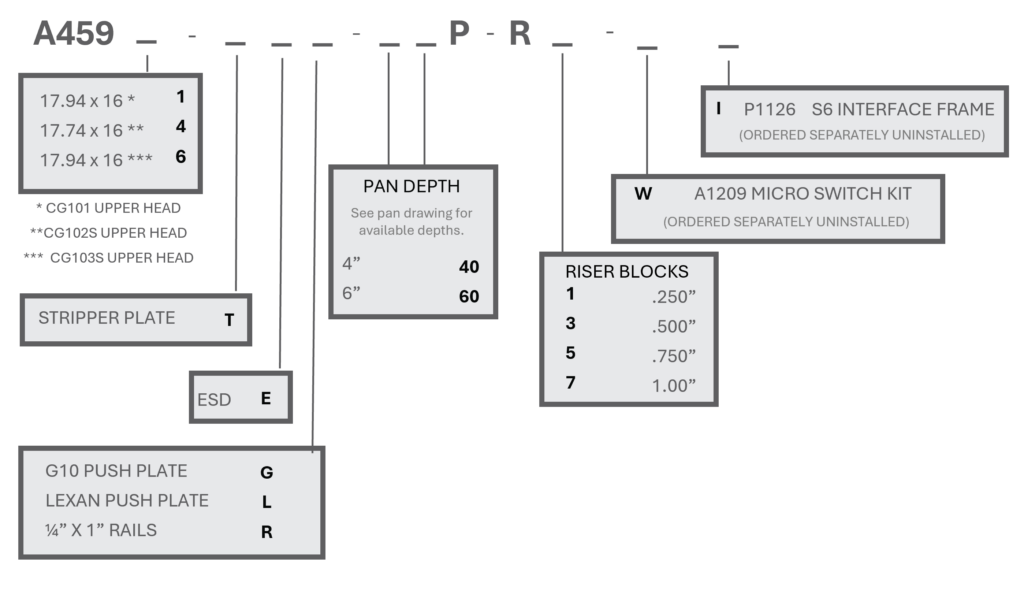

Parts Generator
