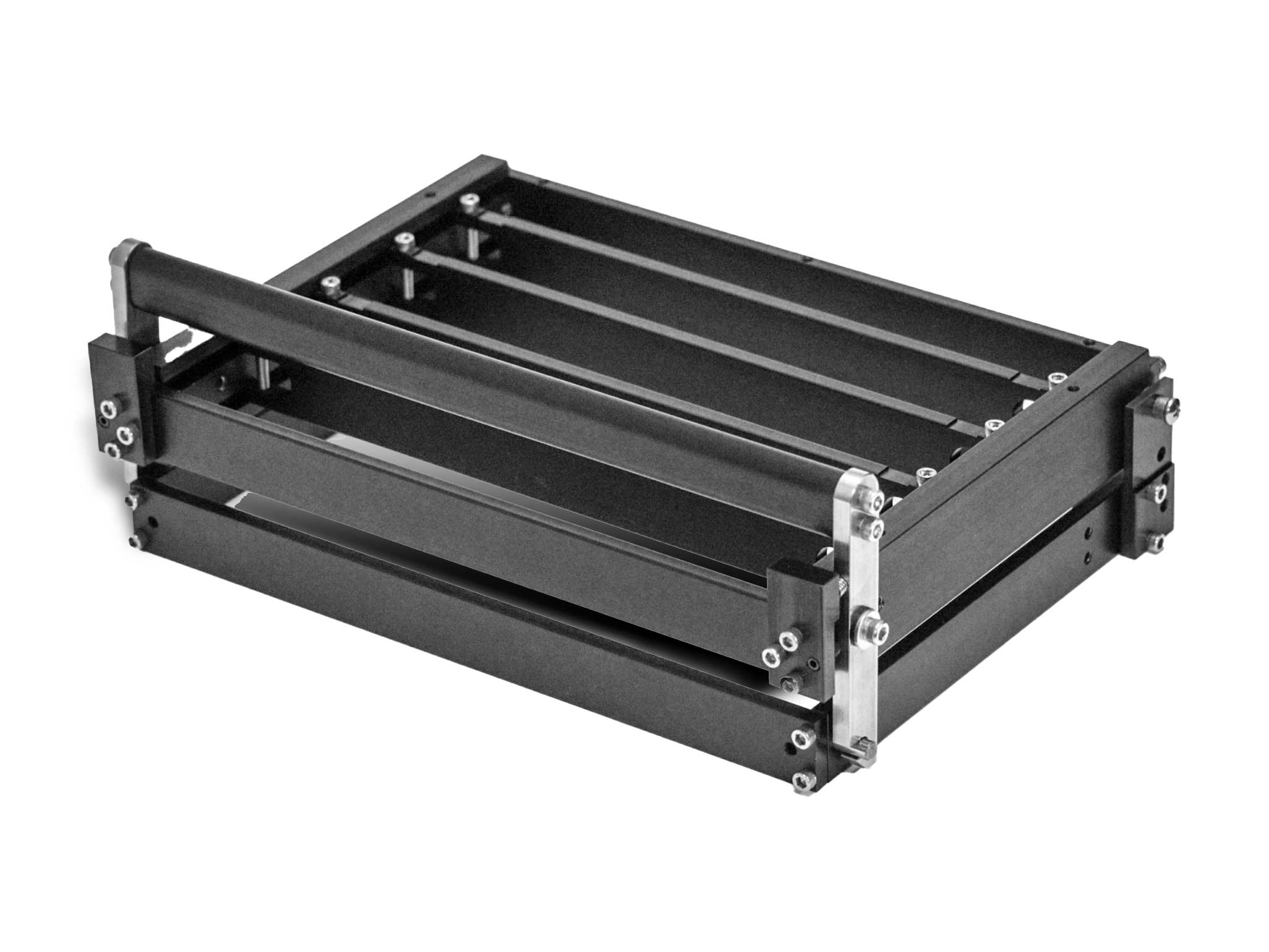

The Semco VOC Series 22 Vacuum Overclamp is a medium weight overclamp used on vacuum fixtures. The top plate stiffener bars minimize any top plate flexing encountered with larger test point count.
Technical Specifications
- 1/4″ x 1″ rails that mount adjustable push finger assemblies.
- Top Plate stiffener rails to minimize top plate flex.
- Gas Arm supports
How To Determine Kit Dimensions
First Dimension: Left To Right
Second Dimension: Front To Back
Example: A2206 OC-2 20″ x 16″ Vacuum Fixture (G2)
20 ” Left to Right
16″ Front to Back
How To Determine UUT And Pan Measurements
| Description | Fixture Size | Max UUT Size | No. of Rails | No. of Fingers |
| OC-1 (A2204) | 16 x 12 (G1) | 10.0 x 7.0 | 4 | 14 |
| OC-2 (A2206) | 20 x 16 (G2) | 14.0 x 11.0 | 5 | 18 |
| OC-3 (A2208) | 24 x 20 (G3) | 18.0 x 15.0 | 6 | 22 |
| All dimensions in inches |
