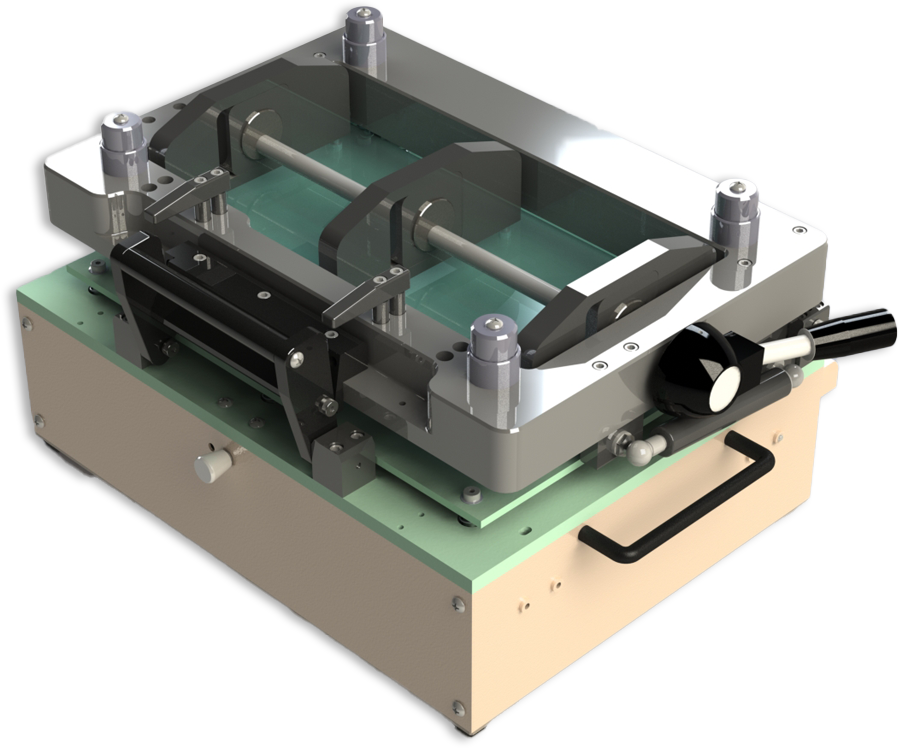

CamTrac ‘Z’ Axis Mechanical Test Kits
The CT Series 40 CAM/TRAC mechanical kits, utilizing the patented CAM mechanism, offer precise Z axis linear motion when testing higher point count and finer pitch test centers. By using the Z axis motion, side load of the test probes is minimized thus increasing probe life and performance.
Technical Specifications
- Hinged 3/8″ thick G10 Probe plate
- Optional 3/8″ thick G10 or 1/2″ thick clear Polycarbonate Push Plate
- Optional 1/2″ or 3/4″ Stroke. (Draw bar version only available in 1/2″ stroke.)
- Locking bars to prevent opening the top cam assembly during test.
- Five Piece Sheet Metal Enclosure for ease of modification to add connectors, fans, and other components.
- Tooling Holes provided for accurate drilling of plates
- Optional Sheet Metal pan depths.
- Optional ESD plates. (-E)
- Optional Stripper plate (-T)
How To Determine Kit Dimensions
First Dimension: Left to Right
Second Dimension: Front to Back
Example: A4002 CT101S: 12″ x 8″
12″ Left to Right
8″ Front to Back
How To Determine UUT And Pan Measurements
| Kit Size | Max UUT Size |
Max UUT Size with Stripper Plate |
| CT101: 8 x 12 (A4001) | 5.00 x 8.00 | 5.00 x 7.50 |
| CT101S: 12 x 8 (A4002) | 9.00 x 5.00 | 8.75 x 4.50 |
| CT102: 12 x 16 (A4003) | 9.00 x 12.00 | 9.00 x 10.00 |
| CT102S: 16 x 12 (A4004) | 13.00 x 8.00 | 13.00 x 8.00 |
| CT103: 16 x 20 (A4005) | 13.00 x 14.00 | 13.00 x 14.00 |
| CT103S: 20 x 16 (A4006) | 17.00 x 12.00 | 17.00 x 11.75 |
| CT104S: 24 x 20 (A4008) | 21.00 x 14.00 | 20.00 x 13.75 |
| All dimensions in inches | ||
