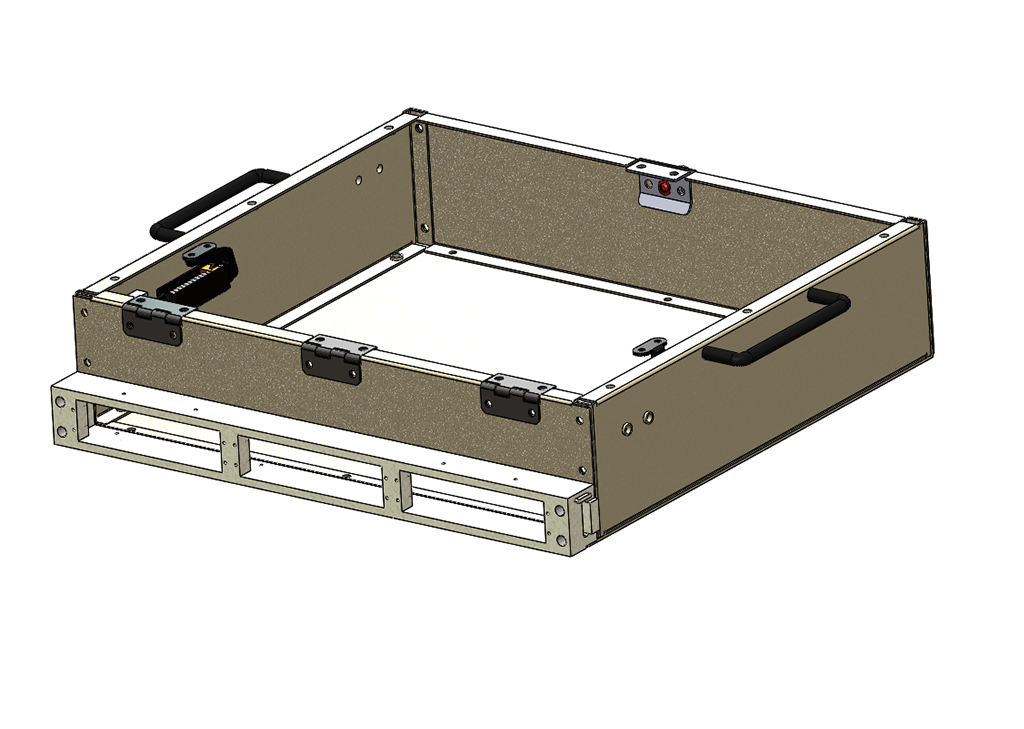

The Series 79 Pan Assembly is used with the Virginia Panel S6 Test Platform.
Technical Specifications
- 5 piece pan for ease of modification to add fans and connectors.
- Optional 3/8″ G10 or ESD G10 blank top.
- Optional spring forces for top plate support.
- Powder Coat finish.
- Optional Pan depths.
How To Determine Kit Dimensions
First Dimension: Left to Right
Second Dimension: Front to Back
Example: A7906-40PAN= VPS6 103S 17.940″ x 16″ x 4″
17.940″ Left to Right
16″ Front to Back 4″ Deep

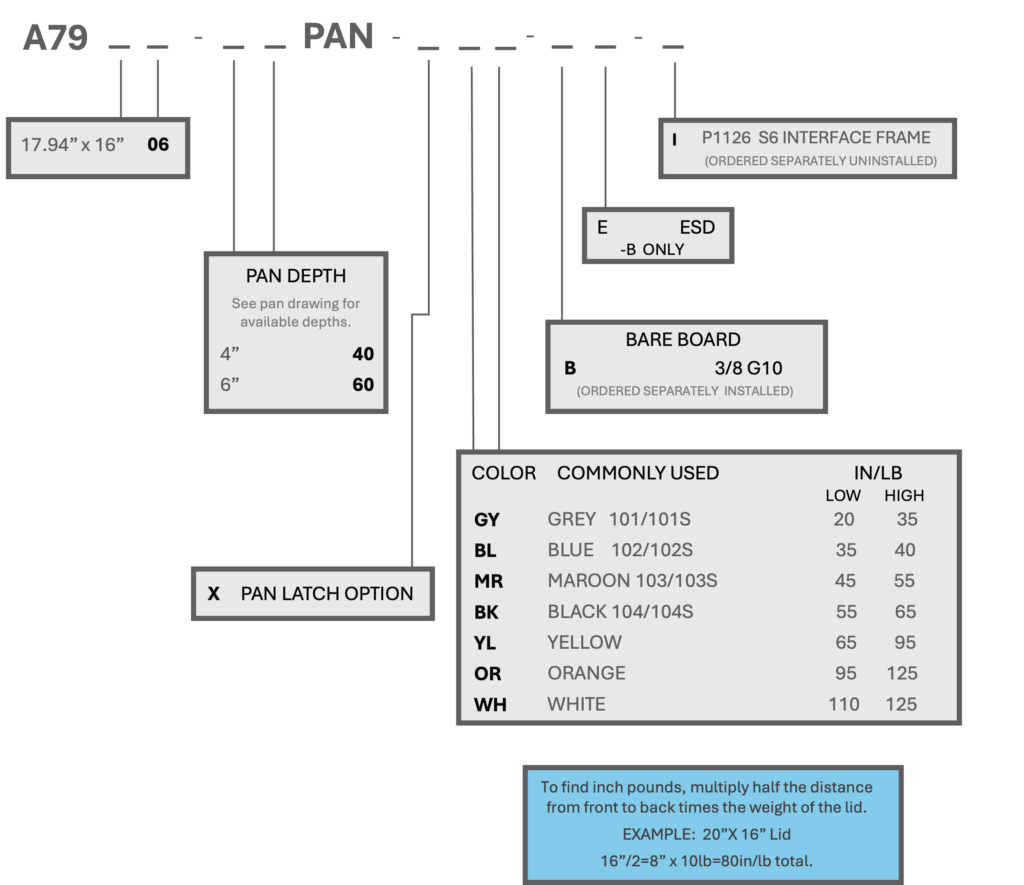

Parts Generator
