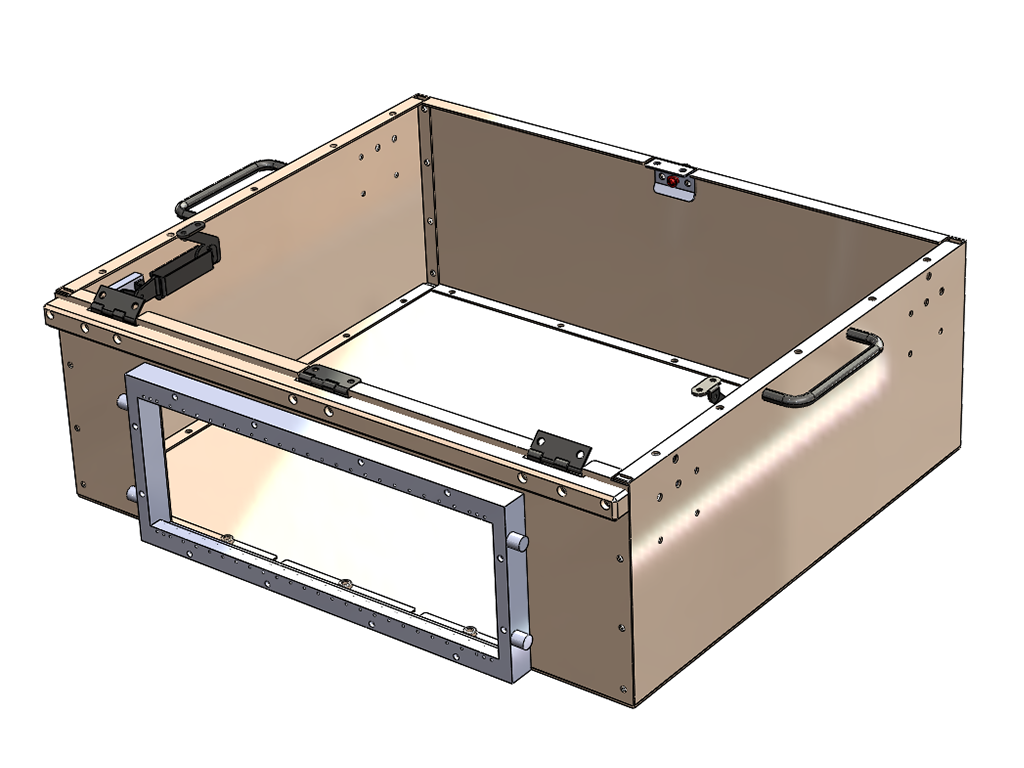

The Series 76 Pan Assembly is used with the Virginia Panel G25 Test Platform.
Technical Specifications
- 5 Piece pan assembly for ease of modification to add fans and connectors.
- Optional 3/8″ G10 or ESD G120 Blank to plate.
- Optional Spring force of Top plate support.
- Powder Coated Finish
How To Determine Kit Dimensions
First Dimension: Left to Right
Second Dimension: Front to Back
Example: A7606-80PAN= VPG25103S 20″ x 16″ x 8″
20″ Left to Right
16″ Front to Back 8″ Deep

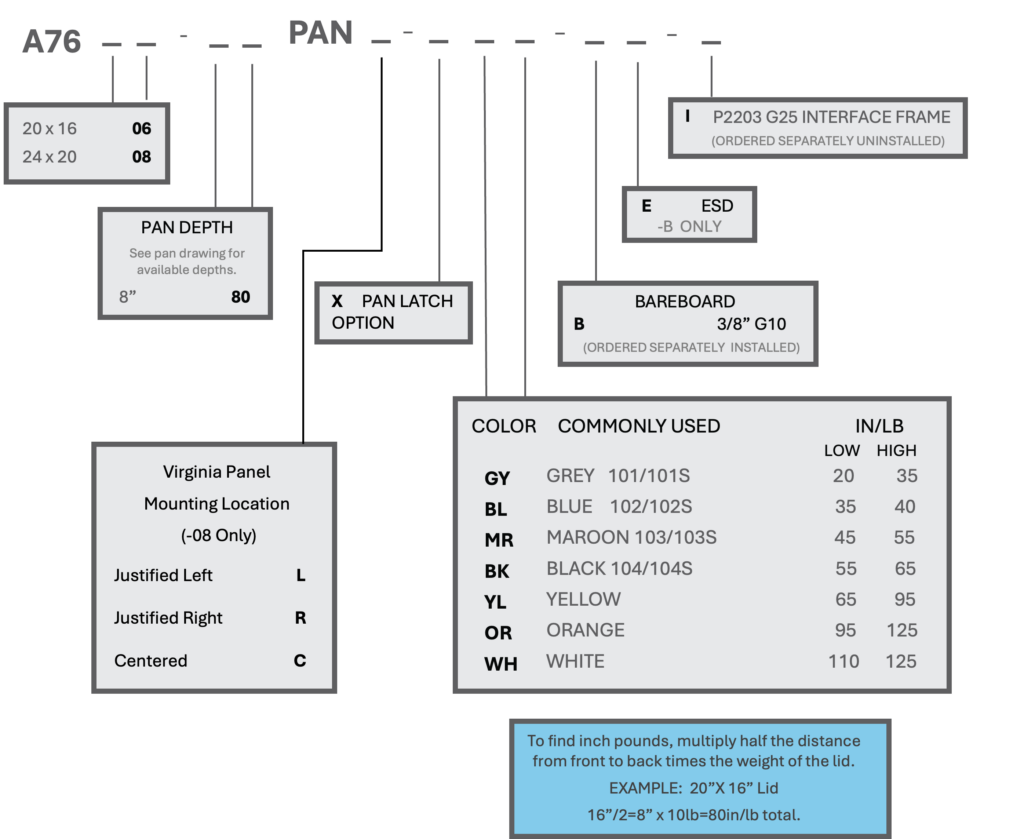

Parts Generator
