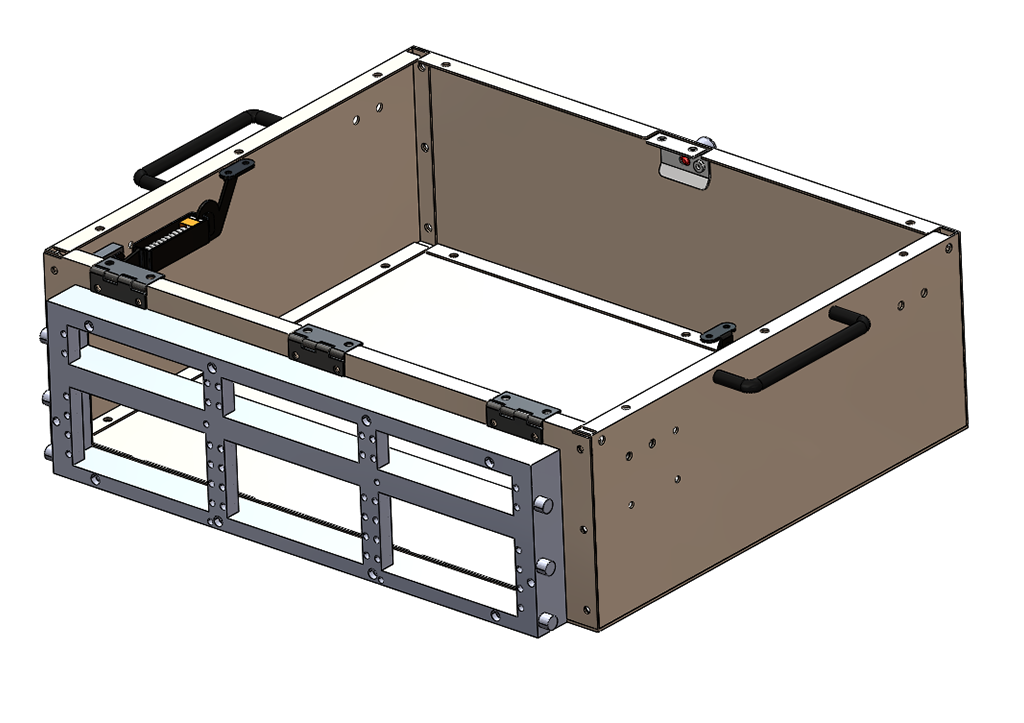

The Series 75 Pan Assembly is used with the Virginia Panel G12X test Platform.
Technical Specifications
- 5 Piece Pan Assembly of ease of modification to add fans and connectors.
- Optional 3/8″ G10 or ESD G10 Blank Top plate.
- Optional Spring force for Top plate support.
- Powder Coated Finish.
- Optional Pan Depths.
- Optional interface locations on the 24 x 20 model.
How To Determine Kit Dimensions
First Dimension: Left to Right
Second Dimension: Front to Back
Example: A7506-40PAN= VPG12X103S 20″ x 16″ x 4″
20″ Left to Right
16″ Front to Back 4″ Deep

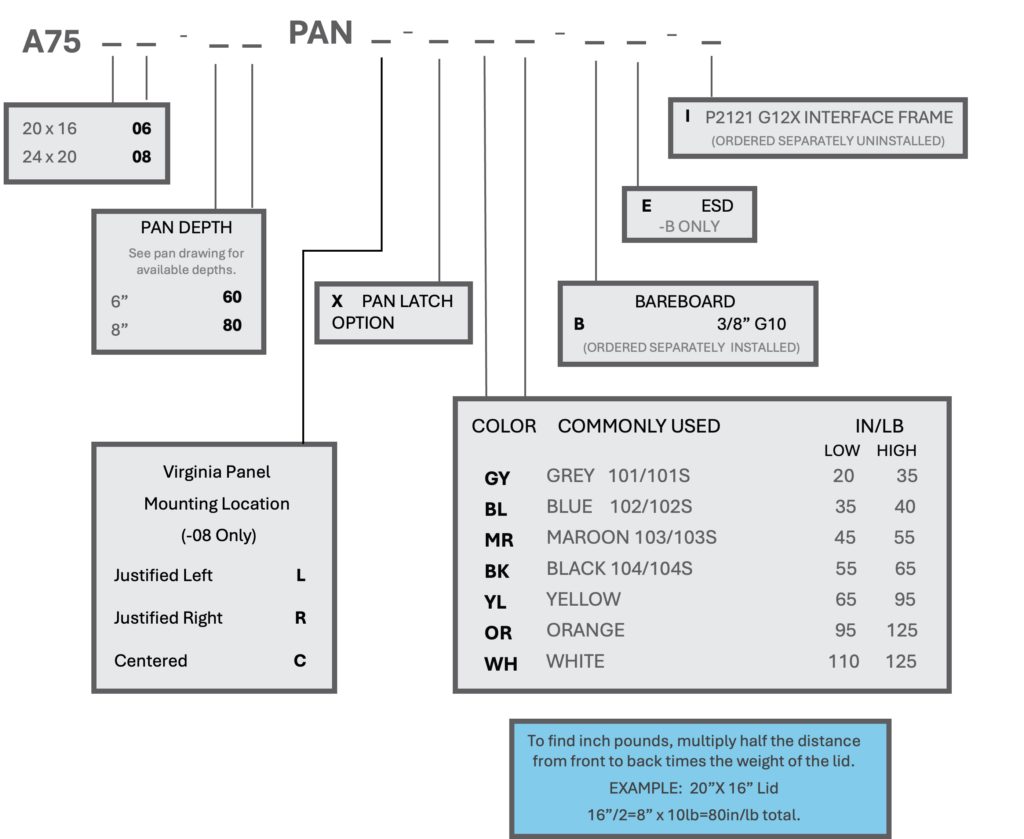

Parts Generator
