Series 49

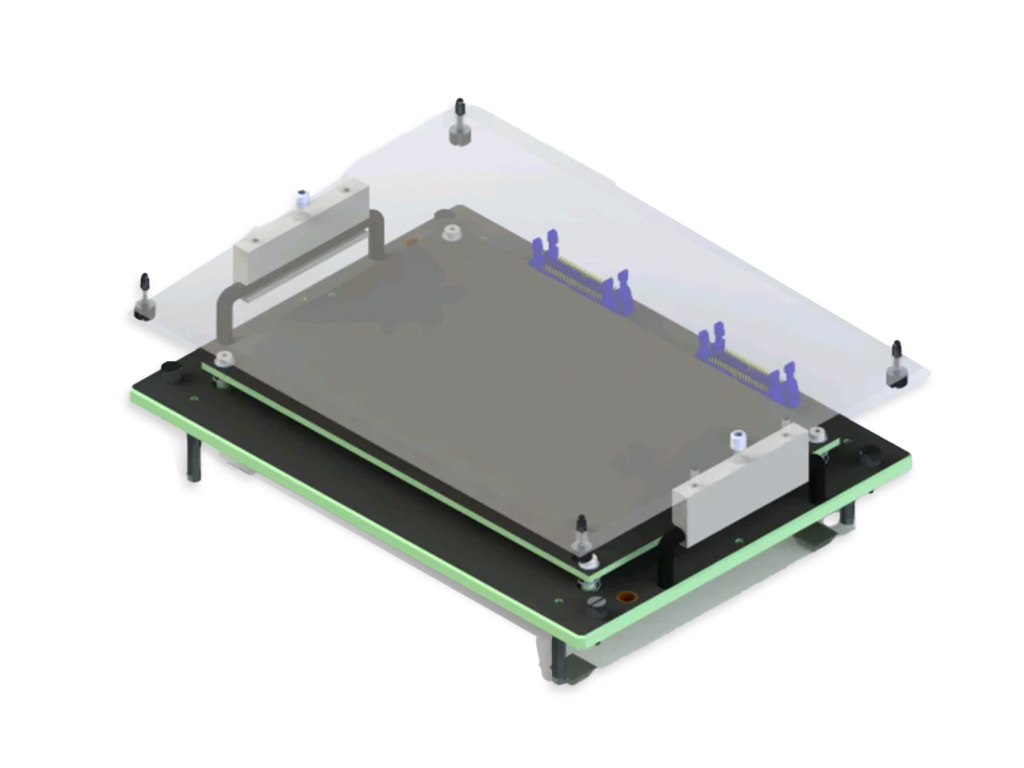

Semco Series 49 Universal Test Fixture Kit

The Series 49 Universal Test Fixture Kit is used with the Series 48 Universal Test System Base. The Test Fixture Kits are quick change  and are available in different configurations. Three versions are offered, a blank kit, whereas the end user can configure the interconnect to the Base with their own connector configuration, The 160 point model which uses four (40) pin IDC ribbon cable connectors to interface between the base and the insert kit, and the -I model that incorporates the same 4 block GR2270 style block interface as used on our Series 34 test fixtures. This allows for increased test point count and the use of Industry Standard 2270 style signal, power, and coax blocks.

Note: UK4904  and UK4908 Subject to availability.

       Technical Specifications

  • Interchangeable insert Kits
  • Optional ESD plates (-E)
  • Optional Stripper Plates (-T)
  • Storage Blocks for easy storage
  •  Multiple Interconnect Options

How To Determine Kit Dimensions

First Dimension: Left To Right
Second Dimension: Front To Back
Example: Universal Insert Kit 16″ (A4906)
20 ” Left to Right
16″ Front to Back

How To Determine UUT And Pan Measurements

Kit Size

Max UUT Size Series 49 Kit

Max UUT Size with Stripper Plate
Series 49 Kit

UK102S: 16 X 12 (A4904)9.62 X 7.509.62 X 6.75
UK103S: 20 X 16 (A4906)13.62 X 10.7513.62 X 9.25
UK104S: 24 X 20 (A4908)17.62 X 10.7517.62 X 9.85
All dimensions in inches

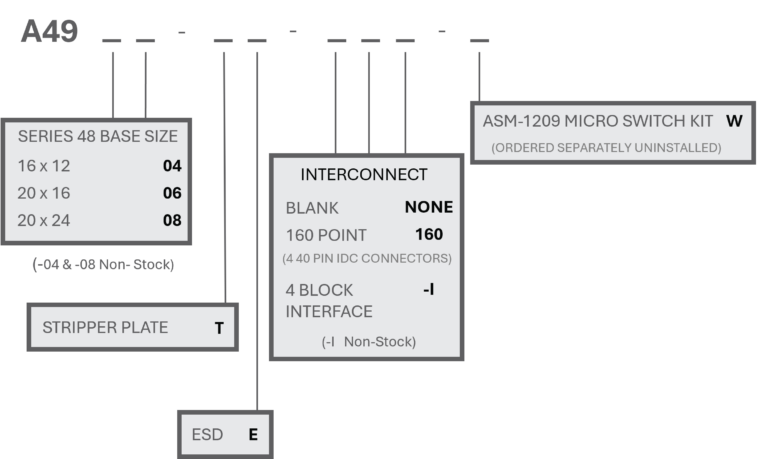

Parts Generator
