Series 33

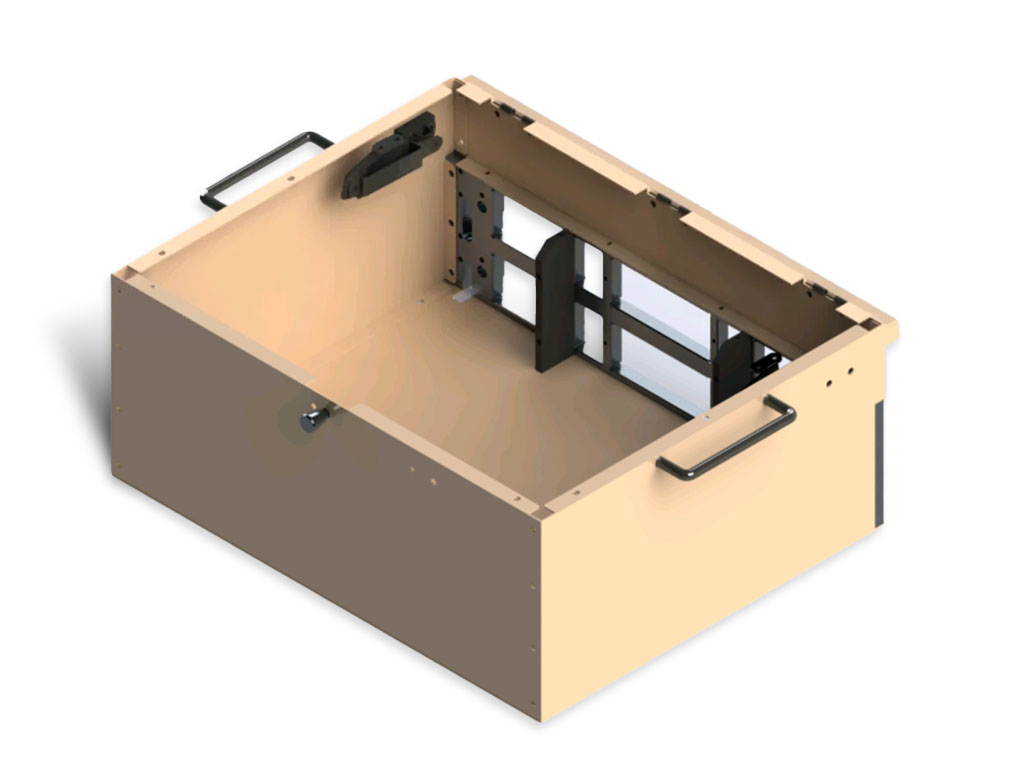

Semco GR Series 33: 2270/VG Style Dual Level 24 Block Interface Test Fixture.

Technical Specifications

  • Dual GR2270/VG style Interface
  • Five Piece Sheet Metal Enclosure for ease of modification to add connectors, fans, and other components.
  • 8″ Pan Depth Standard
  • Accepts Industry Standard 2270/VG signal, Power, and Coax blocks.
  •  Currently provided as a Pan Assembly but the Pan accepts the Series 10, 40, and 45 Upper Assemblies. Contact our Sales Department for more information and availability.

How To Determine Kit Dimensions

First Dimension: Left to Right
Second Dimension: Front to Back
Example: A3306 VG 24 block 103S 20″ x 16″
20″ Left to Right
16″ Front to Back

How To Determine UUT And Pan Measurements

Kit Size Max UUT Size Max UUT Size with Stripper Plate





VG24 103S  (A3306)  20 X 16 CURRENTLY SOLD AS A PAN ASSEMBLY

VG24 104S  (A3308)  24 X 20 CURRENTLY SOLD AS A PAN ASSEMBLY

All dimensions in inches

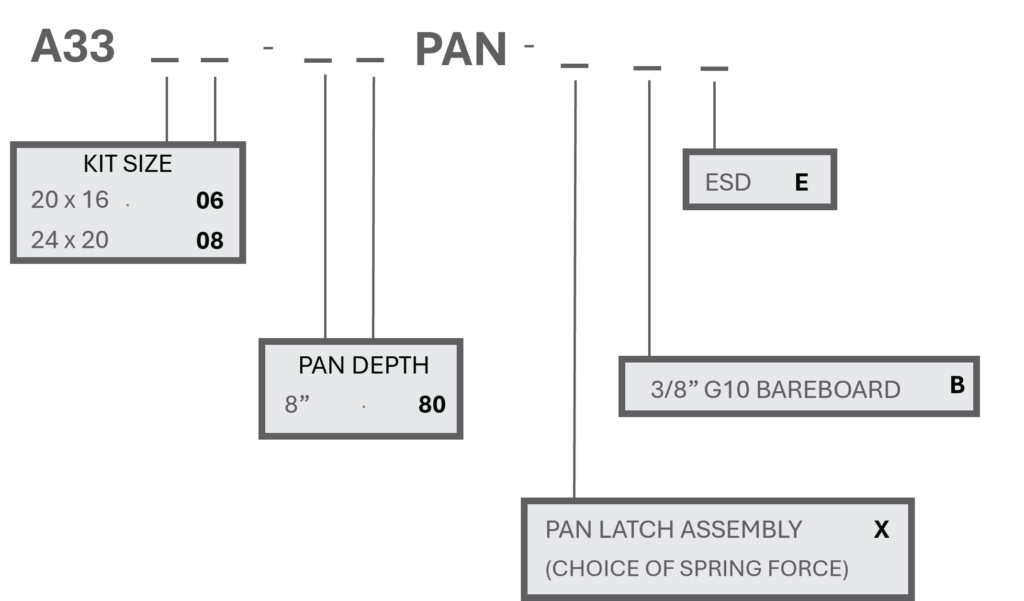

Parts Generator
