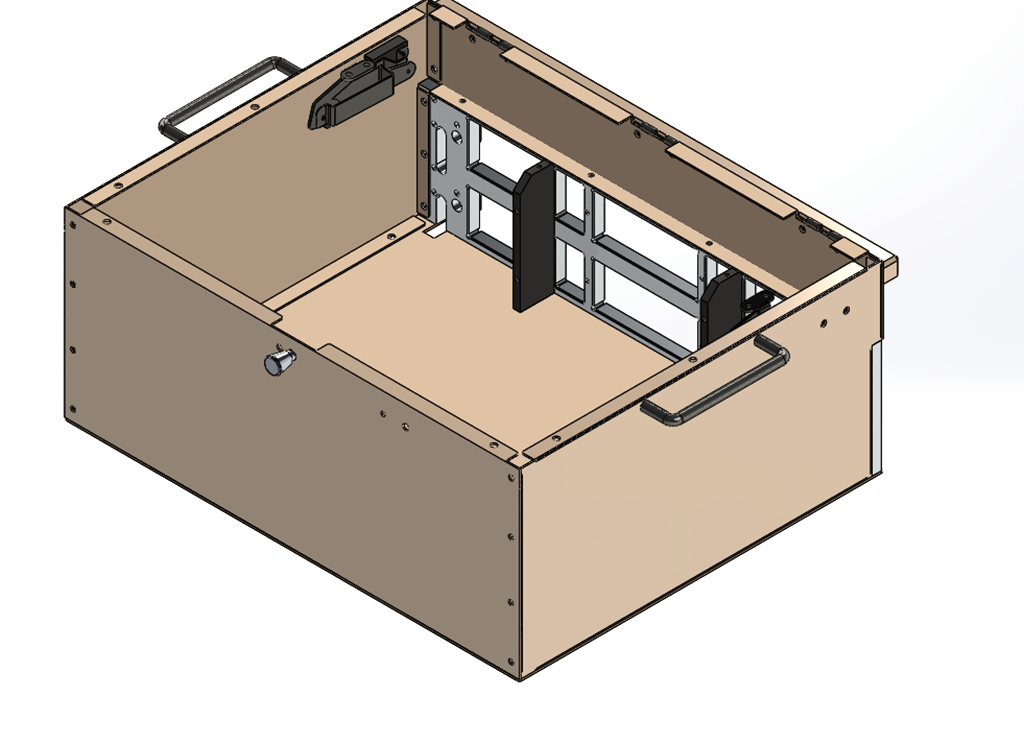

Series 33 – Pan Assembly

The Series 33 pan assembly is used on the VG24 receiver platform. Used with A3213 and A3214 Dual Interface Receivers.

 Technical Specifications

  • 5 piece pan assembly for ease of adding fan and connectors
  • Optional 3/8″ g10 or ESD g10 Blank Top
  • Optional spring force for Top Plate support.
  • Powder Coated Finish.
  • Accepts industry standard VG type interface blocks.

How To Determine Kit Dimensions

First Dimension: Left to Right
Second Dimension: Front to Back
Example: A3306-80PAN= VG24103S 20″ x 16″ x 8″
20″ Left to Right
16″ Front to Back   8″ Deep

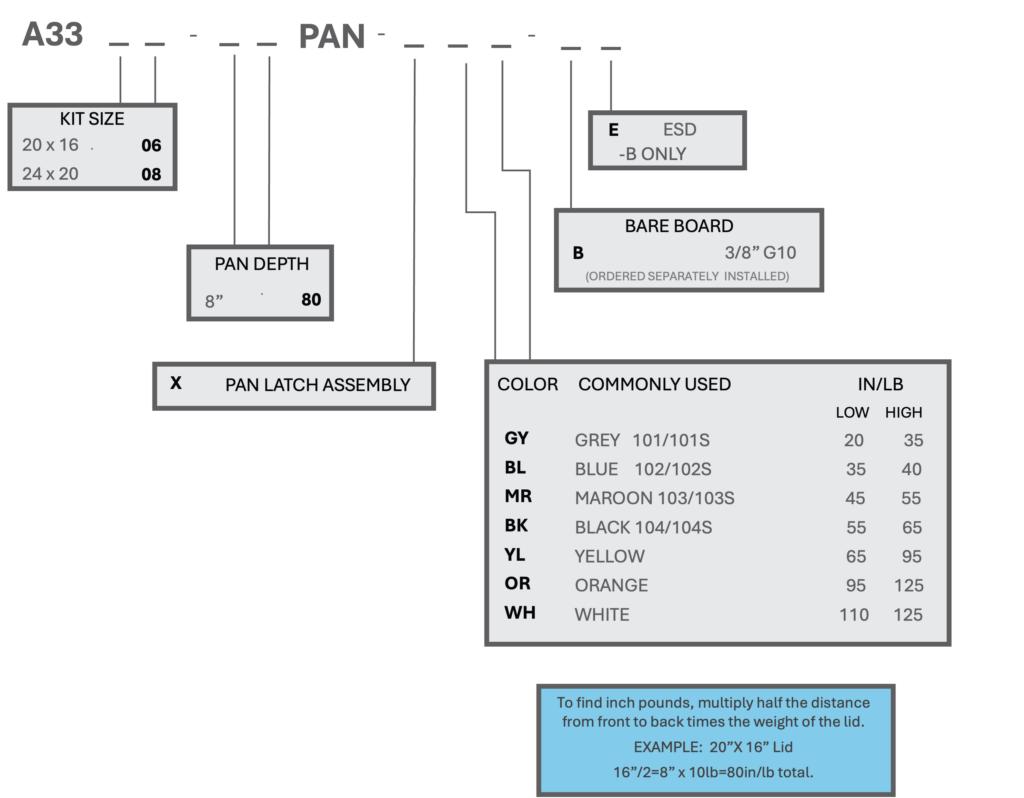

Parts Generator
