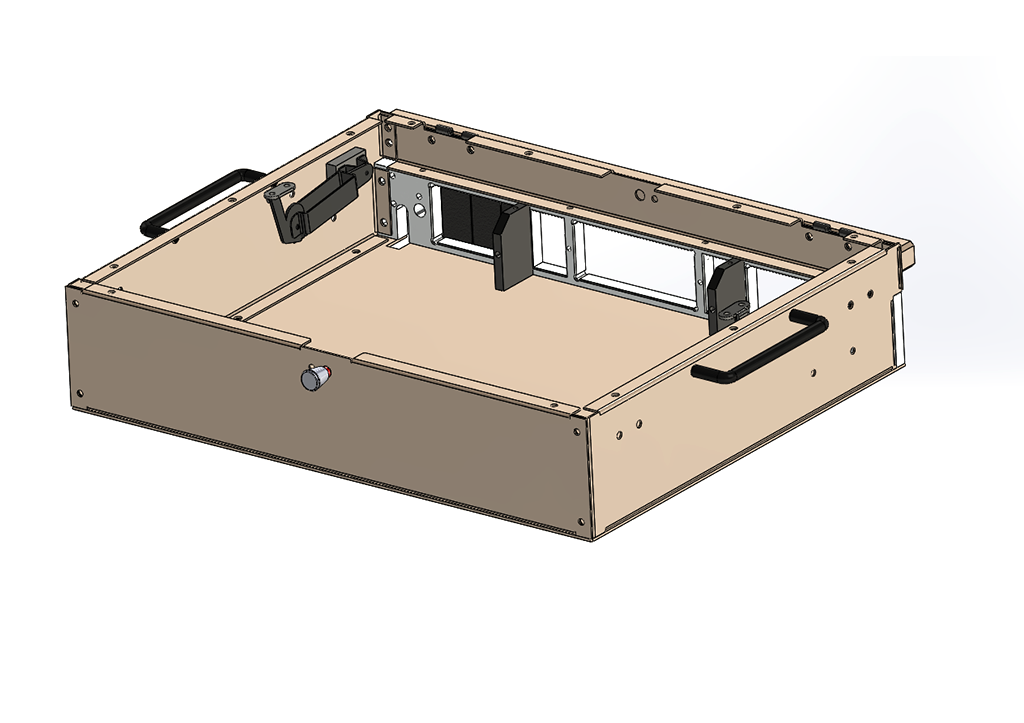

The Series 30 Pan Assembly is used for interfacing to the GR2270/VG12 Test Platform. Used with A3210, 3211, and 3212 Receivers.
Technical Specifications
- 5 Piece Pan Assembly for ease of modification for fans and connectors.
- Optional 3/8″ G10 or ESD G10 Blank top plate.
- Optional spring forces for top plate support.
- Powder Coated Finish.
- Optional Pan Depths.
- Accepts all industry standard VG type interface blocks.
How To Determine Kit Dimensions
First Dimension: Left to Right
Second Dimension: Front to Back
Example: A3006-40PAN= GR103S 20″ x 16″ x 4″
20″ Left to Right
16″ Front to Back 4″ deep

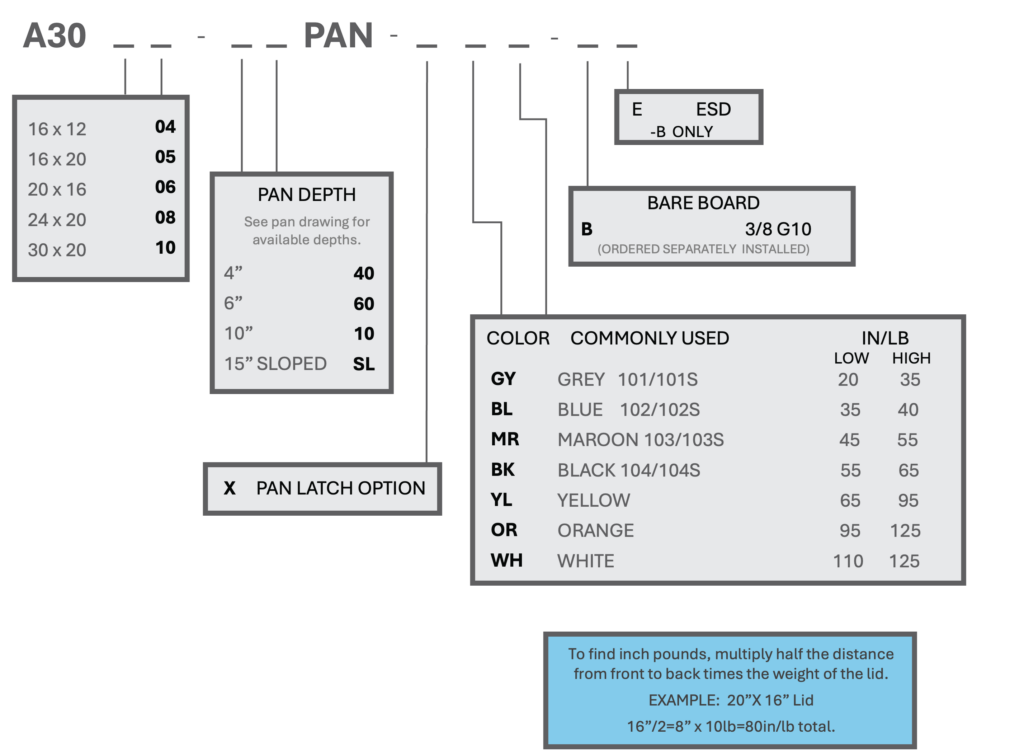

Parts Generator
