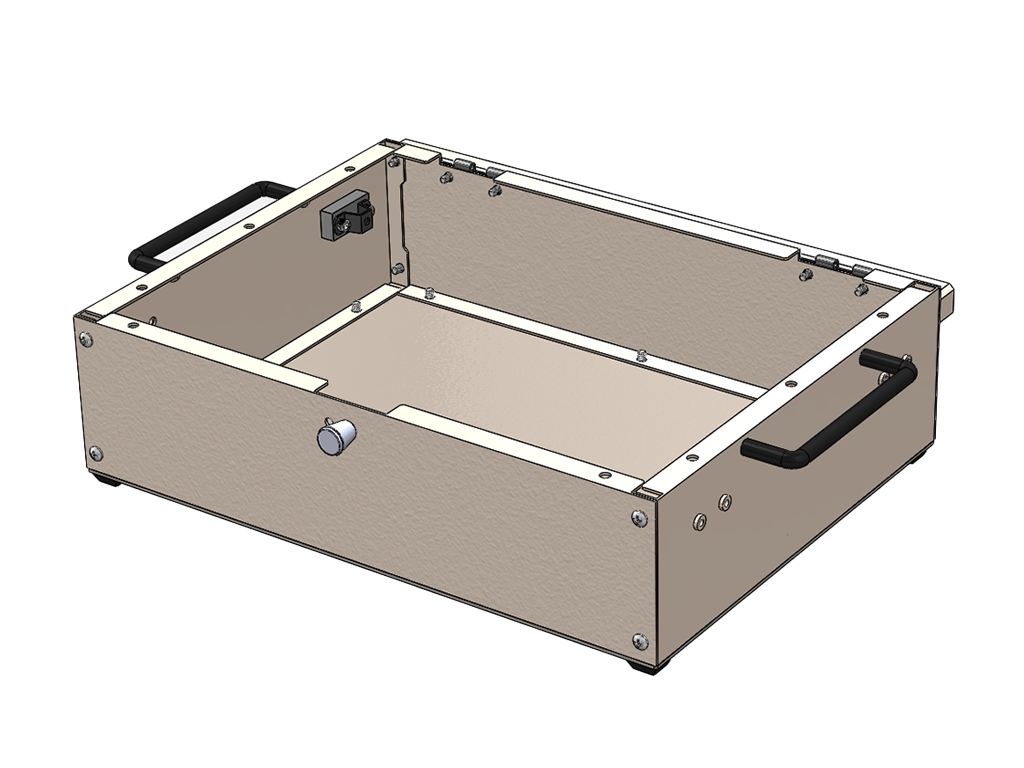

The Series 10 Pan Assembly is typically used for standalone applications in which a dedicated interface is required. The pan is easily modified for custom connector configurations.
Technical Specifications
- 5 piece pan assembly for ease of modification to add fans and connectors.
- Optional Blank Top 3/8″ thick G10 or ESD Blank top plates.
- Optional spring forces for top plate support.
- Powder Coated Finish.
- Optional Pan Depths.

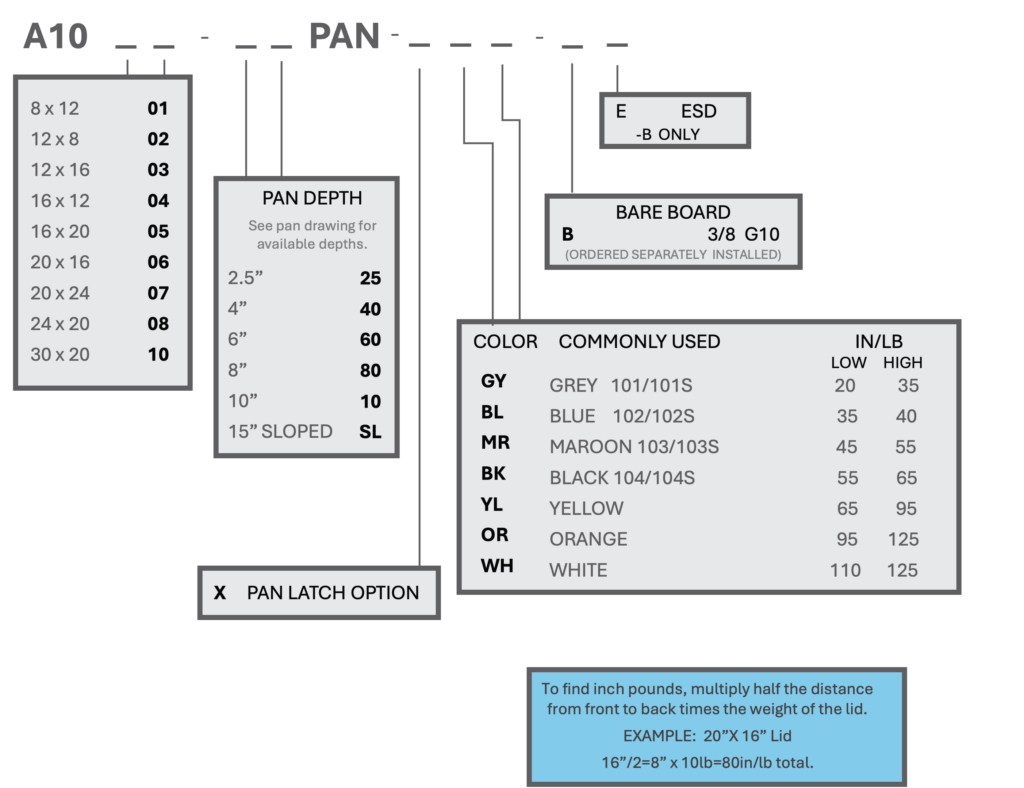

How To Determine Kit Dimensions
First Dimension: Left to Right
Second Dimension: Front to Back
Example: A1006-40PAN=103S 20″ x 16″ x 4″
20″ Left to Right
16″ Front to Back x 4″ deep
